DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding

Max 150 Prints/Minute Ink Roll Coder

Max 3 Lines Hot Ink Roll Coder

20 Characters/Line Intermittent Ink Roll Coder

Herkunftsort:

Shanghai, China

Markenname:

DIKAI

Zertifizierung:

CE; ISO 9001

Kontakt

Bitte um ein Angebot

DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding

Einzelheiten zum Produkt

Druckfläche:

40 mm * 3 Zeilen

Druckgeschwindigkeit:

max. 150 Drucke/Minute

Druckzeilen:

max. 3 Zeilen, 20 Zeichen/Zeile

Gussgröße:

Höhe 3,5 mm * 1,5, 2, 2,5 mm (Breite)

Größe der Tintenrolle:

φ36*32, φ36*40mm (empfohlen)

Stromversorgung:

Wechselstrom 220 ± 10 V, 50/60 Hz, 130 W, 2 A

Arbeitstemperatur:

4–40 °C, 10–95 % Luftfeuchtigkeit

Stromspannung:

130W, 2A-Sicherung

Abmessungen:

205 mm * 162,5 mm * 124 mm

Gewicht:

2,2 kg

Druck-Inhalt:

MFG/ Ablaufdatum, Losnummer, Seriennummer usw.

Schriftgrößen:

T-Typ: 3,5 mm * 1,5 T, 2,0 T, 2,5 T (B)

Druckgeschwindigkeit:

max. 900 ppm, 60 Meter/Minute

Kernkomponenten:

PC-Board

Angetriebener Typ:

Elektrisch

Hervorheben:

Max 150 Prints/Minute Ink Roll Coder

Max 3 Lines Hot Ink Roll Coder

20 Characters/Line Intermittent Ink Roll Coder

Zahlungs- und Versandbedingungen

Min Bestellmenge

Preis

$500-600

Lieferzeit

5-8 Werktage

Verwandte Produkte

Automatische Rolle der Tinten-210V, die Sicherung 2A MFG der Maschine 36mm Datums-Druckmaschine kodiert

Beste Preis erhalten

heißer der Tinten-130W Verfallsdatums-Code-Drucker Rollendes kodierer-36x35mm 300 PPMs

Beste Preis erhalten

Enddatumstempel-Lebensmittelverpackungs-Druckmaschine 130W 35m/min Wechselstrom 230V

Beste Preis erhalten

Tinten-Rollenkodierer 220V 36x32mm heißer/Verfallsdatum, das Maschine 300 PPMs kodiert

Beste Preis erhalten

Kontakt

Kontaktieren Sie uns jetzt

Produktbeschreibung

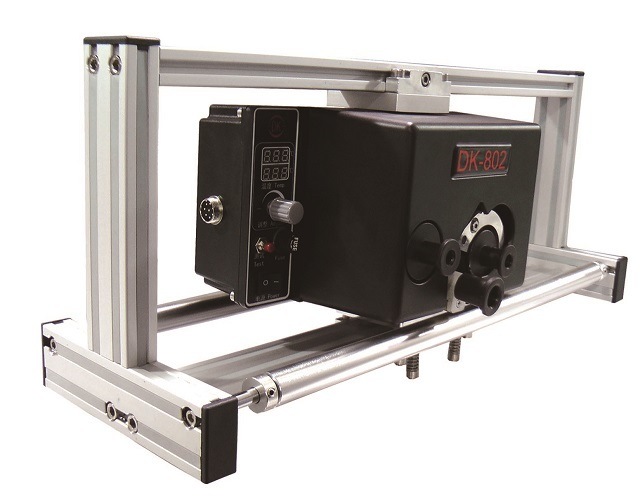

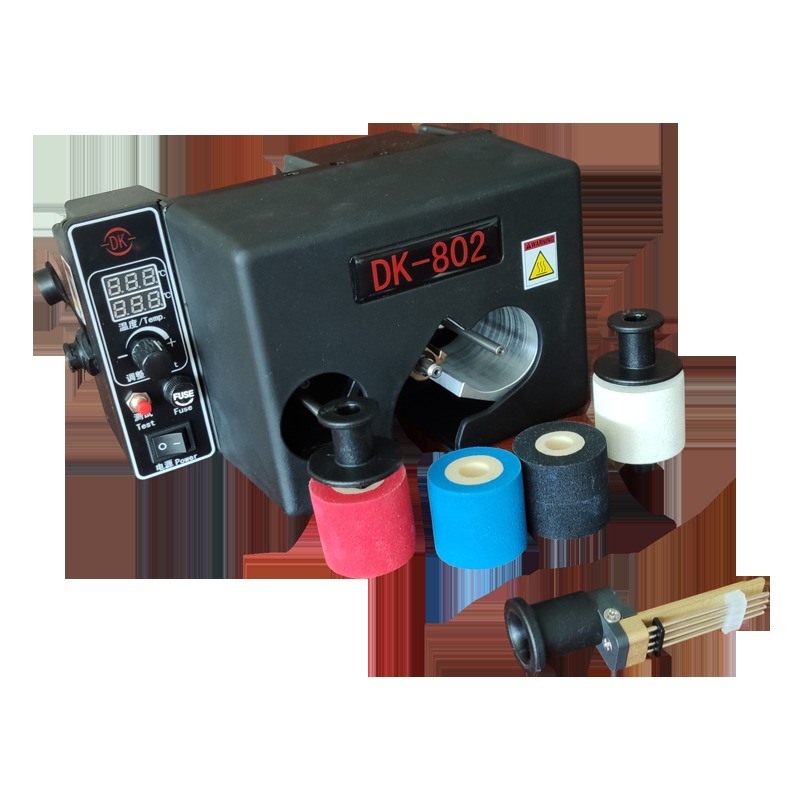

DIKAI DK-802 Intermittent Ink Roll Coder

Product Overview

The DK-802 Intermittent Ink Roll Coder was developed by Dikai R&D as an upgraded version of the DK-801 model. This innovative coder combines the print head and control box into a single unit, significantly reducing costs while maintaining high performance.

Designed for integration with intermittent packaging machines, the DK-802 efficiently prints essential information including dates and lot numbers. With a maximum speed of 150 ppm, it meets the requirements of most intermittent packaging systems. Compared to intermittent hot stamp coders, the DK-802 offers substantial savings through its economical hot ink roll consumables.

Key Features

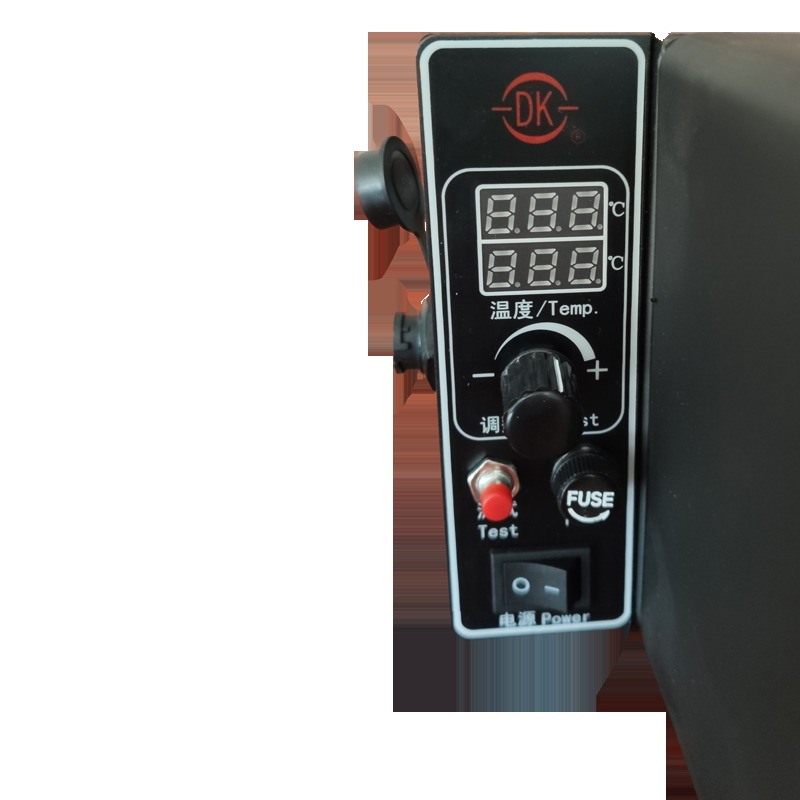

LED Display for clear operation monitoring
Consistent, stable printing performance
Reduced mechanical wear for longer service life

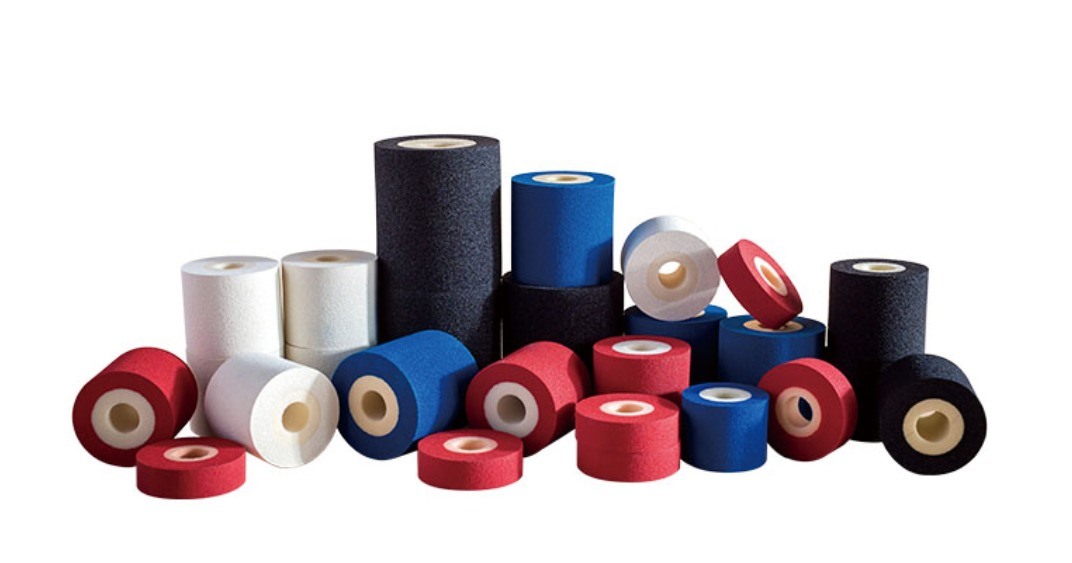

Low-cost consumables for economical operation
Compact design for space-efficient installation
Simple setup and user-friendly operation

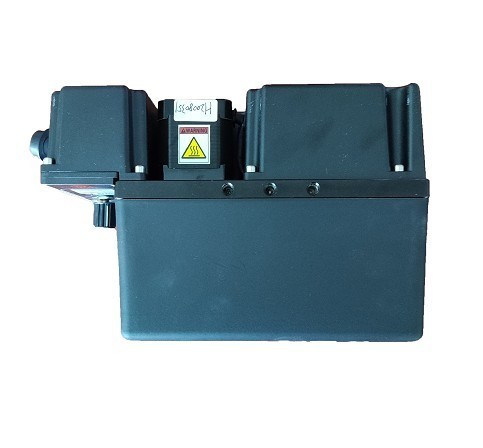

Right elevation view

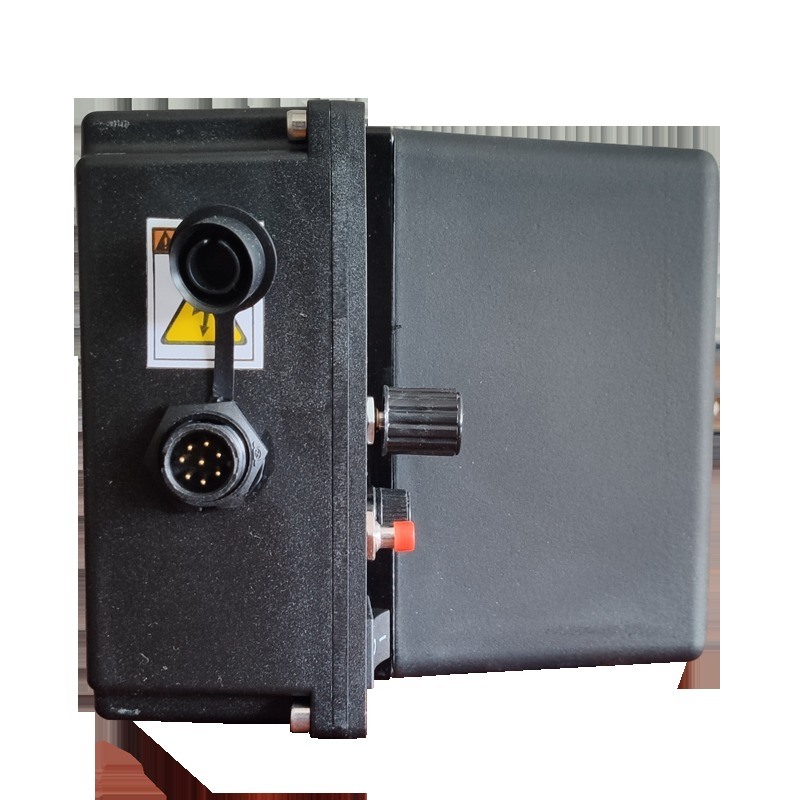

Left elevation view

Front elevation view

Technical Specifications

Print Area	40mm × 3 lines
Print Speed	Maximum 150 prints/minute
Print Lines	Maximum 3 lines, 20 characters/line
Font Size	Height 3.5mm × Width 1.5mm, 2mm, or 2.5mm
Controller	LED Display
Ink Roll Size	φ36×32mm or φ36×40mm (recommended)
Power Supply	AC 220±10V, 50/60Hz, 130W, 2A
Operating Conditions	4-40℃, 10%-95% humidity

Note: Prices shown are indicative only. Please contact us for customized solutions and accurate pricing.

Packaging & Shipping

The DK-802 is packaged in durable cartons suitable for sea, air, or express courier shipping.

After-Sales Support

Our comprehensive technical support includes:

R&D technical assistance
Detailed operation manual guidance
24-hour professional online support
Instructional video resources
Onsite support when required

Frequently Asked Questions

Why choose Dikai?

With 25 years of experience in coding machine development and manufacturing, we are committed to meeting diverse customer needs in coding and marking applications.

What is the standard lead time for Dikai products?

Standard lead time is 1-2 weeks after order confirmation. Stocked items can be shipped within 2 working days.

What warranty does Dikai provide?

All products come with a standard 12-month warranty from the date of leaving our warehouse.

How does your after-sales service work?

In countries with authorized distributors, we work through our local partners. Additionally, we provide direct online technical support and continuously updated video resources.
