DK-1300A High Speed Automatic Hot Ink Roll Coder with Print Speed max 600PPM and Print Area T-Type:≤13lines,max20

Print Speed max 600PPM Hot Ink Roll Coder

Print Area T-Type:≤13lines

max20 Ink Roll Coding Machine

Print Area R-Type:≤10lines

max13 Ink Roller

Herkunftsort:

Shanghai, China

Markenname:

DIKAI

Zertifizierung:

CE; ISO 9001

Kontakt

Bitte um ein Angebot

DK-1300A High Speed Automatic Hot Ink Roll Coder with Print Speed max 600PPM and Print Area T-Type:≤13lines,max20

Einzelheiten zum Produkt

Stromspannung:

AC220+10V,50/60Hz

Leistung:

140W, 2A-Sicherung

Druckgeschwindigkeit:

max. 600 ppm, 50 Meter/Minute

Druckfläche:

T: ≤ 13 Zeilen, max. 20; R: ≤ 10 Zeilen, max. 13

Schriftgrößen:

T-Typ: 2,0T, 2,5T, 3,0T, 2,5*7T; R-Typ: 3,5 R, 4,5 R, 5,5 R

Beutellänge:

≥38 mm (4-fach-Drucker); ≥75 mm (2-up-Drucker)

Größe der Tintenrolle:

36*32mm, 36*35mm, 36*40mm

Druckfrequenz:

≤ 300Times/min

Abmessungen:

Druckereinheit: 94 mm x 100 mm x 166 mm

Gewicht:

Druckeinheit: 4 kg; Controller-Box: 2 kg

Druck-Inhalt:

MFG-/EXPdatum, Partienummer, Seriennummer

Kernkomponenten:

PC-Board

Automatische Note:

Automatisch

Angetriebener Typ:

Elektrisch

Verpackungsmaterial:

Papier

Hervorheben:

Print Speed max 600PPM Hot Ink Roll Coder

Print Area T-Type:≤13lines

max20 Ink Roll Coding Machine

Print Area R-Type:≤10lines

max13 Ink Roller

Zahlungs- und Versandbedingungen

Min Bestellmenge

Preis

$600-800

Lieferzeit

5-8 Werktage

Verwandte Produkte

Automatische Rolle der Tinten-210V, die Sicherung 2A MFG der Maschine 36mm Datums-Druckmaschine kodiert

Beste Preis erhalten

heißer der Tinten-130W Verfallsdatums-Code-Drucker Rollendes kodierer-36x35mm 300 PPMs

Beste Preis erhalten

Enddatumstempel-Lebensmittelverpackungs-Druckmaschine 130W 35m/min Wechselstrom 230V

Beste Preis erhalten

Tinten-Rollenkodierer 220V 36x32mm heißer/Verfallsdatum, das Maschine 300 PPMs kodiert

Beste Preis erhalten

Kontakt

Kontaktieren Sie uns jetzt

Produktbeschreibung

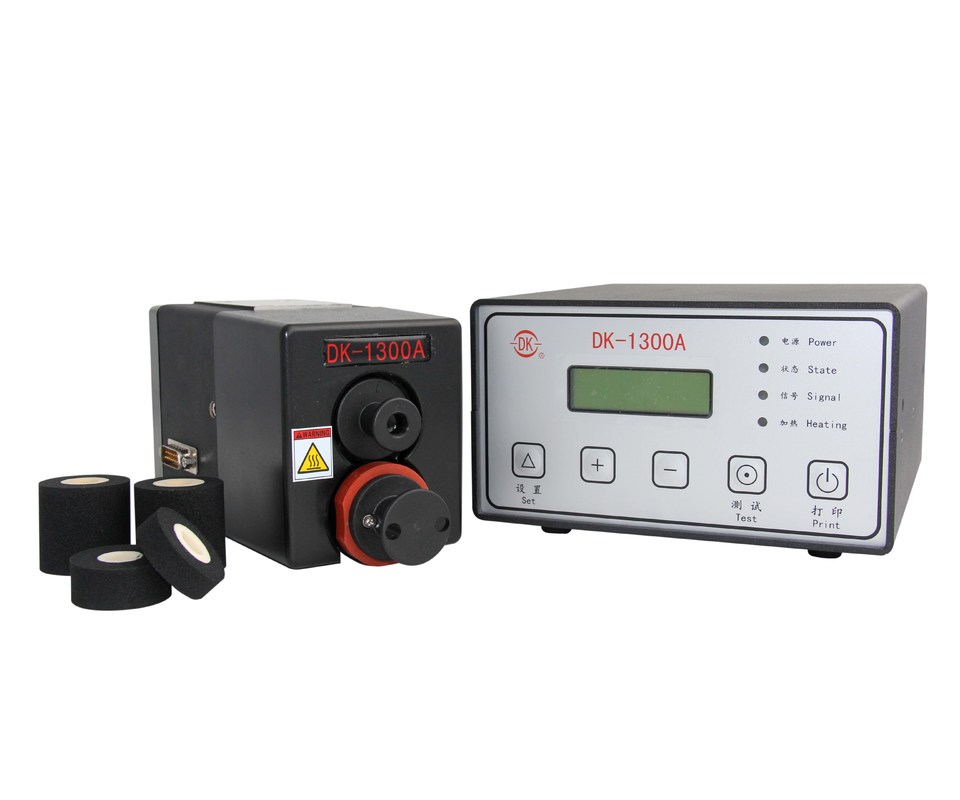

DIKAI Dk-1300A High Speed Ink Roll Coder Hot Ink Roll Coding Machine Ink Roller

Product Overview

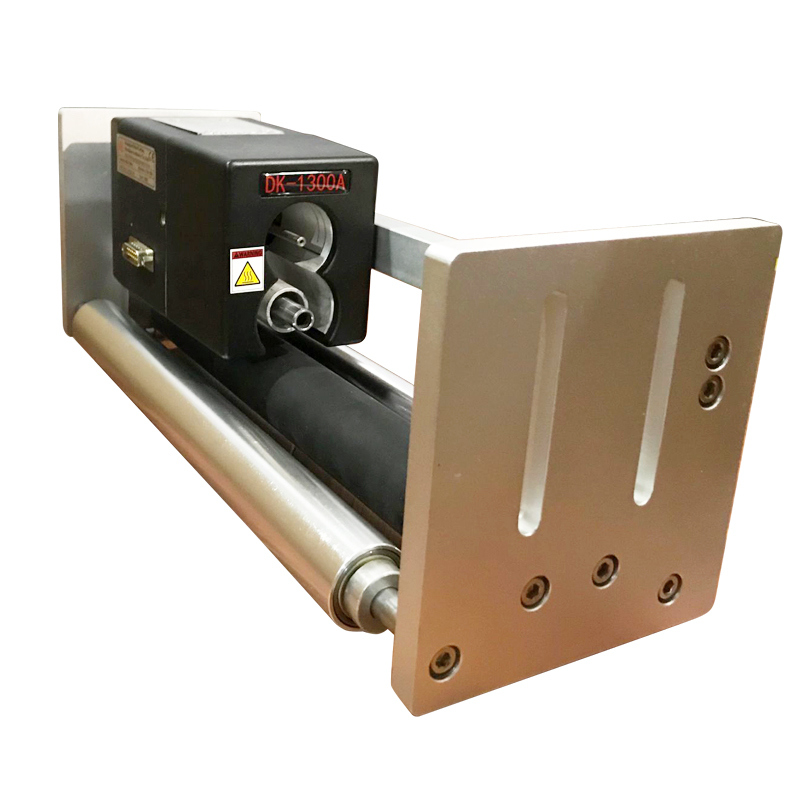

The DK-1300A High Speed Ink Roll Coder is an electronic continuous motion coder designed for installation on horizontal flow wrappers to print dates, lot numbers, and other information on plastic film. Widely used in food, pharmaceutical, and tissue industries, this model is installed on over 80% of Chinese horizontal flow wrappers. Leading packaging machine manufacturers like Hualian, Soontrue, Modern, and Soonforward have been our long-term partners.

Key Features

High-speed operation
Easy installation
Stable printing performance
Compact design

Technical Specifications

Product Name	DK-1300A High Speed Ink Roll Coder
Print Area	T-Type (Axial): ≤13 lines, max 20 characters per line R-Type (Radial): ≤10 lines, max 13 characters per line
Type Sizes	T-Type: 2.0T, 2.5T, 3.0T, 2.5*7T R-Type: 3.5R, 4.5R, 5.5R
Pouch Length	≥38mm (4-up printer) ≥75mm (2-up printer)
Print Frequency	≤300 times/min
Ink Roll Required	3632mm, 3635mm, 36*40mm
Electricity	AC220+10V, 50/60Hz
Power	140W, 2A fuse
Print Speed	Max 900PPM, 60 meters/minute
Print Contents	MFG/EXP date, lot number, serial number, etc.

Note: The prices shown on Alibaba are not final prices. Please consult us for proper solutions.

Packaging & Shipping

The carton package is suitable for sea, air, and fast courier shipping.

After Sales Service

R&D supports
Operation Manual Guidance
Within 24-hour professional online supports
Video supports
Possible onsite supports

Frequently Asked Questions

1. Why choose Dikai?

Our company has dedicated 25 years to developing, manufacturing, and selling quality coding machines and consumables. We commit to satisfying every customer's different needs in coding and marking.

2. What's the regular lead time for Dikai Products?

Lead time for all Dikai goods is 1-2 weeks after order confirmation. Stocked goods can be delivered in 2 working days.

3. What's the warranty of Dikai goods?

Standard warranty is 12 months after leaving Dikai warehouse.

4. How about your after-sales service?

For countries with distributors, we rely on our distributor network for after-sales services. Dikai also provides online technical support and continuously upgraded video support materials.
