DIKAI DK-1100B Hot Ink Roll Coder with 1 Year Warranty Long Service Life for Food Industry Date Printing Machine

1 Year Warranty Hot Ink Roll Coder

Long Service Life Ink Roll Coder

Food Industry Date Printing Machine

Herkunftsort:

Shanghai, China

Markenname:

DIKAI

Zertifizierung:

CE; ISO 9001

Kontakt

Bitte um ein Angebot

DIKAI DK-1100B Hot Ink Roll Coder with 1 Year Warranty Long Service Life for Food Industry Date Printing Machine

Einzelheiten zum Produkt

Kernkomponenten:

PC-Board

Stromspannung:

130W, Sicherung 2A

Abmessungen:

120*100*170mm

Druckfläche:

max. 13 Zeilen, 20 Zeichen/Zeile

Schriftgrößen:

3mm, 3,5mm oder wie gewünscht

Beutellänge:

≥38 mm (4-Seiten-Drucker) ≥75 mm (2-Seiten-Drucker)

Tinten-Rolle erforderte:

36*32/35/40mm

Stromversorgung:

AC220+10V,50/60Hz

Druckgeschwindigkeit:

max. 300 ppm, 35 Meter/Minute

Druck-Inhalt:

MFG/ Ablaufdatum, Losnummer, Seriennummer usw.

Gewicht:

Druckeinheit: 2 kg, Steuerkasten: 1 kg

Druckfrequenz:

≤300 Drucke/Min

Oberflächengeschwindigkeit:

35 Meter/Minute

Druckzeilen:

maximal 13 Zeilen

Paketgröße:

77* 33*27cm

Hervorheben:

1 Year Warranty Hot Ink Roll Coder

Long Service Life Ink Roll Coder

Food Industry Date Printing Machine

Zahlungs- und Versandbedingungen

Min Bestellmenge

Preis

$400-500

Lieferzeit

5-8 Werktage

Verwandte Produkte

Automatische Rolle der Tinten-210V, die Sicherung 2A MFG der Maschine 36mm Datums-Druckmaschine kodiert

Beste Preis erhalten

heißer der Tinten-130W Verfallsdatums-Code-Drucker Rollendes kodierer-36x35mm 300 PPMs

Beste Preis erhalten

Enddatumstempel-Lebensmittelverpackungs-Druckmaschine 130W 35m/min Wechselstrom 230V

Beste Preis erhalten

Tinten-Rollenkodierer 220V 36x32mm heißer/Verfallsdatum, das Maschine 300 PPMs kodiert

Beste Preis erhalten

Kontakt

Kontaktieren Sie uns jetzt

Produktbeschreibung

DIKAI DK-1100B Hot Ink Roll Coder

The DK-1100B Ink Roll Coder is a continuous coding machine designed for integration with flow packers and continuous packing machines. It efficiently prints MFG/EXP dates, lot numbers, and serial numbers with a maximum print speed of 300 prints per minute and surface speed up to 35 meters per minute.

This industrial coder has been widely adopted in food, daily chemicals, tissue, and pharmaceutical industries. With cumulative sales exceeding 100,000 units since 2001, it serves over 4,000 end users including major brands like Mondelez, Pepsico, and Yili Dairy.

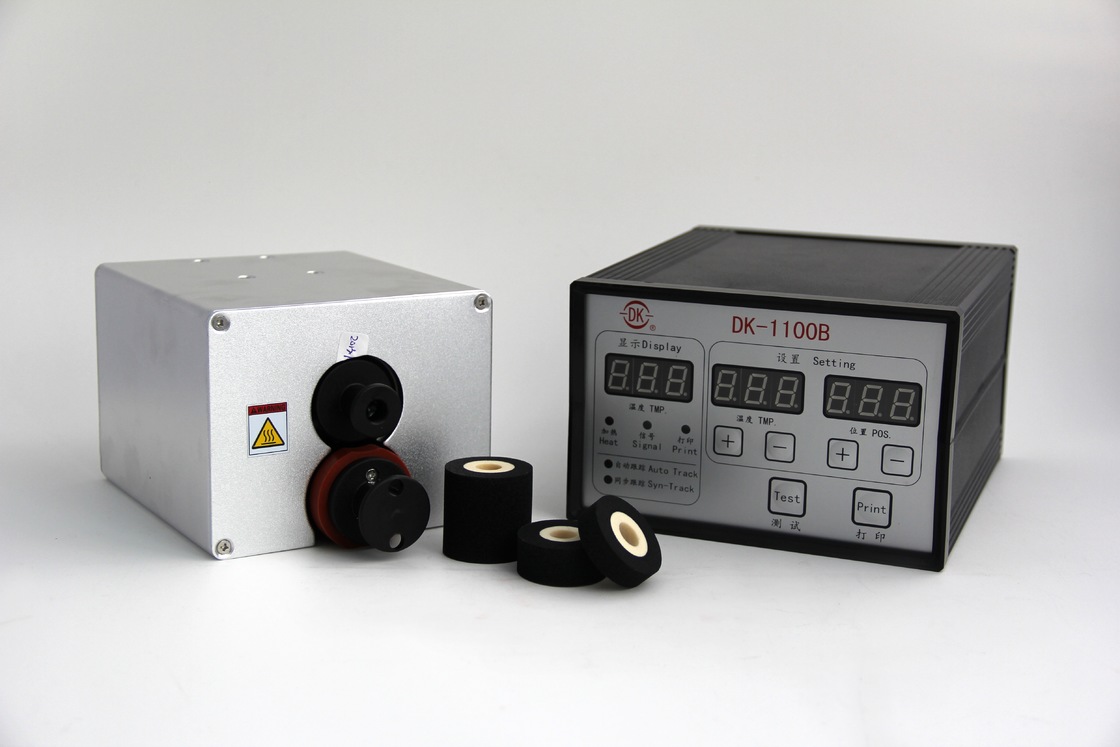

Main Components

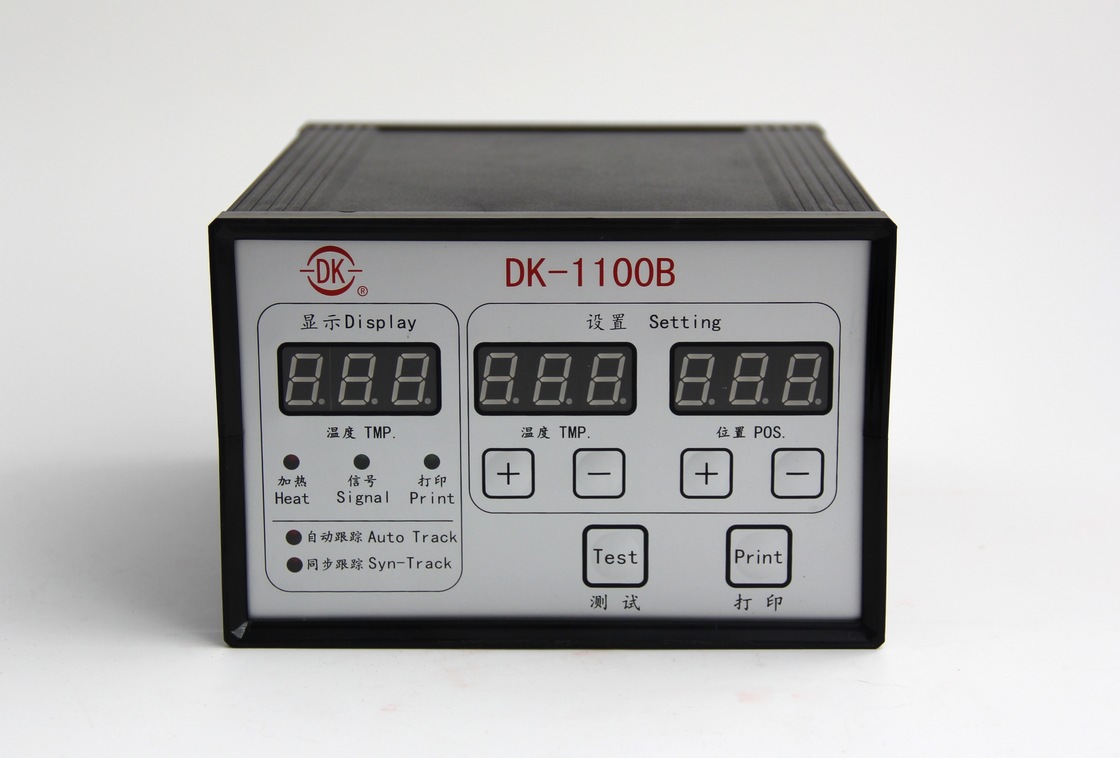

Controller

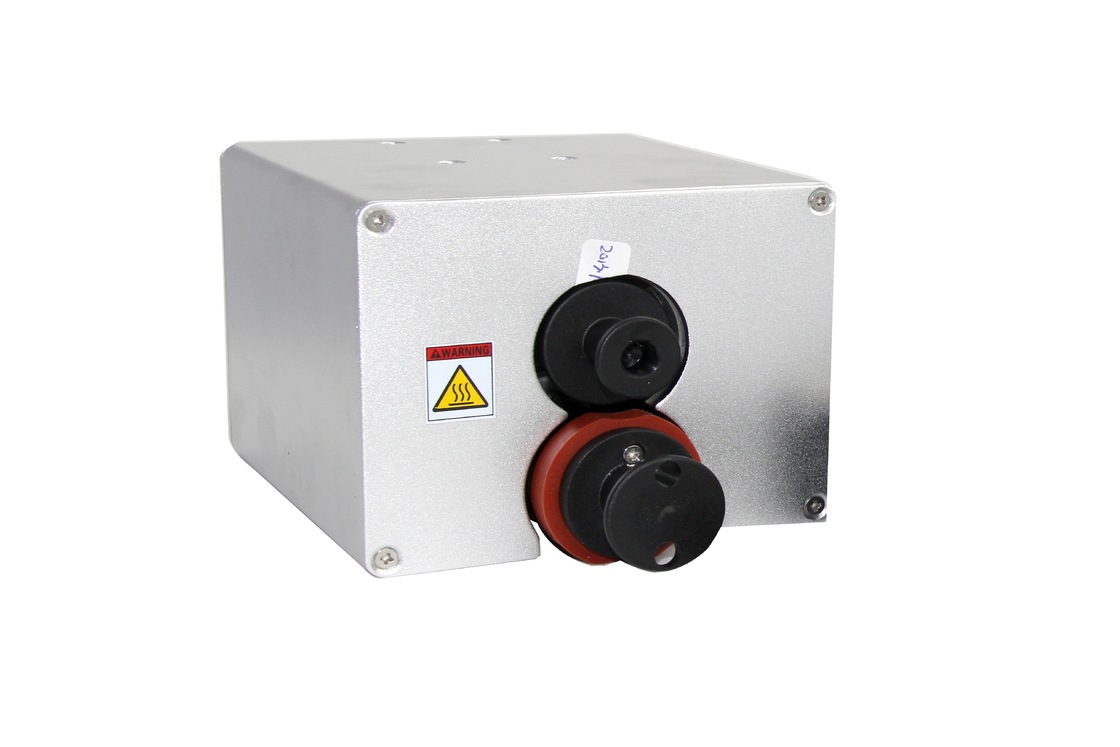

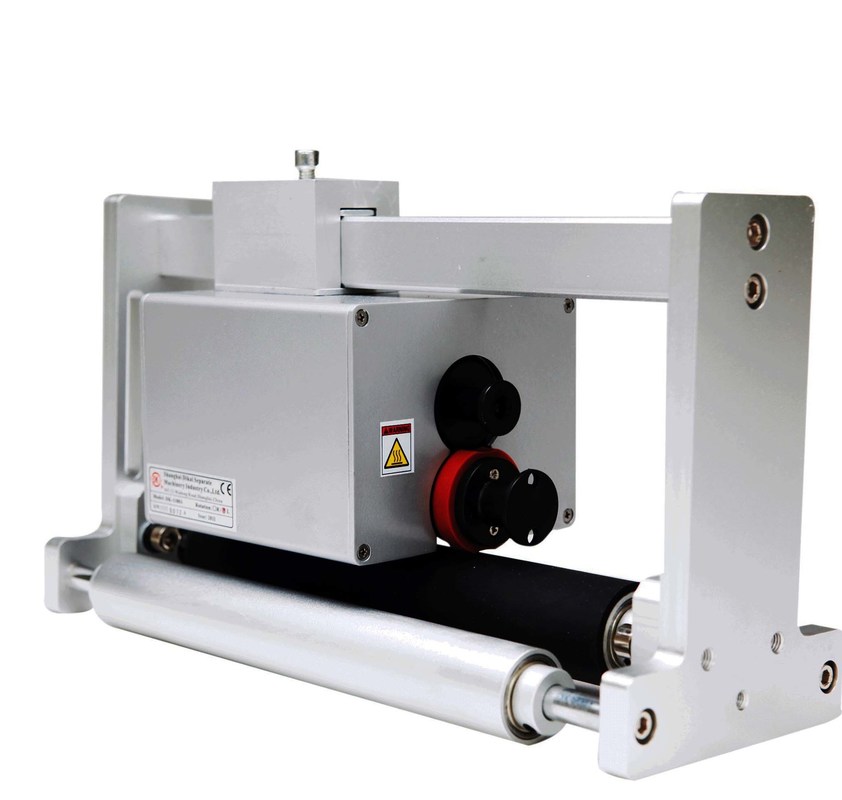

Printer Unit

Technical Specifications

Feature	Specification
Product Name	DK-1100B Ink Roll Coder
Print Area	≤13 lines, max 20 characters/line
Type Sizes	Standard 3.0T, 2.5*7T, 3.5R (custom sizes available)
Pouch Length	≥38mm (4-up printer) ≥75mm (2-up printer)
Print Frequency	≤300 prints/minute
Ink Roll Required	3632mm/3635mm/36*40mm
Electricity	AC220+10V, 50/60Hz
Power	130W, 2A fuse
Print Contents	MFG/EXP date, lot number, serial number, etc.

Note: Prices shown are not final. Please consult for customized solutions.

Applications

Max Print Speed: 300 PPM
Surface Speed: 35 meters/minute
Print Information: Date, lot number, shifts
Print Lines: Maximum 13 lines
Industry Applications: Food, daily chemicals

Print Results

Packaging & Shipping

Standard export cartons with soft internal protection
Suitable for international sea, air, and courier shipping
Package Size: 77×33×27cm (with 500mm bracket)
Gross Weight: 9.5kg
Lead Time: 1-2 weeks after order confirmation

After Sales Service

R&D support
Operation manual guidance
24-hour professional online support
Video support resources
Possible onsite support

Frequently Asked Questions

1. Why choose DIKAI?

With 25 years of experience in developing, manufacturing, and selling quality coding machines and consumables, we are committed to satisfying every customer's unique coding and marking requirements.

2. What's the regular lead time?

Standard lead time is 1-2 weeks after order confirmation. Stocked items can be shipped within 2 working days.

3. What's the warranty period?

Standard warranty is 12 months from leaving DIKAI warehouse.

4. How about after-sales service?

We work with local distributors for support in their regions, supplemented by online technical services and continuously updated video support resources.
