Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing

20 Characters per Line Hot Ink Roll Coder

2A Fuse Date Code Printer

1 Year Warranty Expiry Date Printer

Herkunftsort:

Shanghai, China

Markenname:

DIKAI

Zertifizierung:

CE; ISO 9001

Kontakt

Bitte um ein Angebot

Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing

Einzelheiten zum Produkt

Stromspannung:

AC220+10V,50/60Hz

Leistung:

130W, Sicherung 2A

Druckgeschwindigkeit:

max. 300 ppm, 35 Meter/Minute

Druckfläche:

max. 13 Zeilen, 20 Zeichen/Zeile

Schriftgrößen:

3mm, 3,5mm oder wie gewünscht

Beutellänge:

≥38 mm (4-Seiten-Drucker) ≥75 mm (2-Seiten-Drucker)

Tinten-Rolle:

36*32/35/40mm

Druck-Inhalt:

MFG/ Ablaufdatum, Losnummer, Seriennummer usw.

Größen des Druckers:

120*100*170mm

Druckergewicht:

2 kg

Controller Gewicht:

1kg

Druckfrequenz:

≤300 Drucke/Min

Oberflächengeschwindigkeit:

35 Meter/Minute

Druckzeilen:

maximal 13 Zeilen

Kernkomponenten:

PC-Board

Hervorheben:

20 Characters per Line Hot Ink Roll Coder

2A Fuse Date Code Printer

1 Year Warranty Expiry Date Printer

Zahlungs- und Versandbedingungen

Min Bestellmenge

Preis

$400-500

Lieferzeit

5-8 Werktage

Verwandte Produkte

Automatische Rolle der Tinten-210V, die Sicherung 2A MFG der Maschine 36mm Datums-Druckmaschine kodiert

Beste Preis erhalten

heißer der Tinten-130W Verfallsdatums-Code-Drucker Rollendes kodierer-36x35mm 300 PPMs

Beste Preis erhalten

Enddatumstempel-Lebensmittelverpackungs-Druckmaschine 130W 35m/min Wechselstrom 230V

Beste Preis erhalten

Tinten-Rollenkodierer 220V 36x32mm heißer/Verfallsdatum, das Maschine 300 PPMs kodiert

Beste Preis erhalten

Kontakt

Kontaktieren Sie uns jetzt

Produktbeschreibung

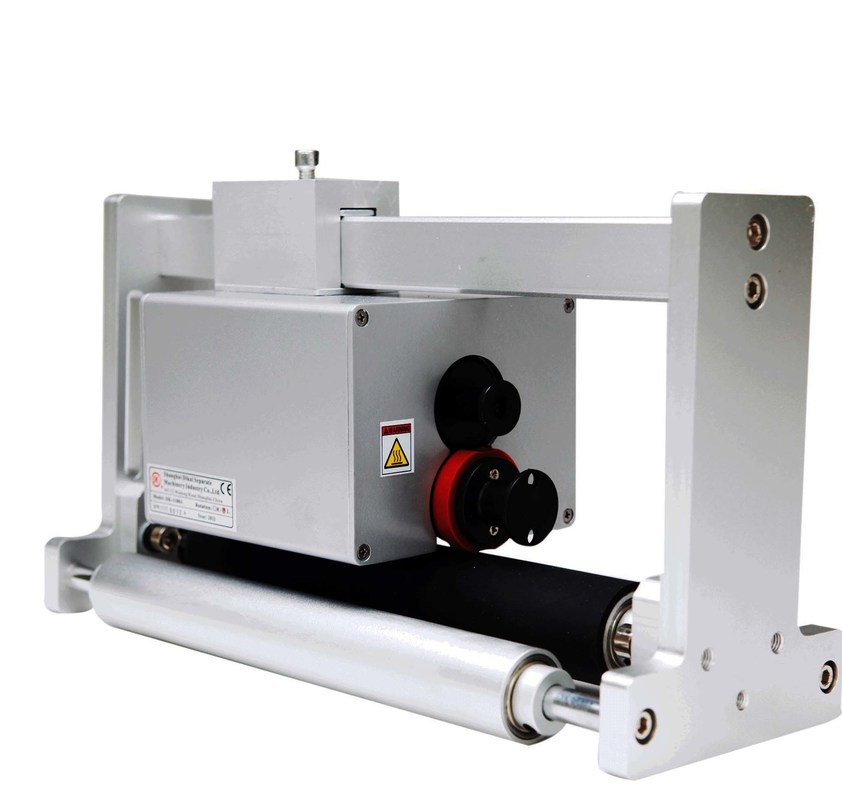

DIKAI DK-1100B Hot Ink Roll Coder

Product Description

The DK-1100B Ink Roll Coder is a continuous coding machine designed for integration with flow packers and continuous packing machines. It prints MFG/EXP date, lot number, and serial number with a maximum speed of 300 prints/minute and surface speed up to 35 meters/minute. Widely used in food, daily chemicals, tissue, and pharmaceutical industries.

Since 2001, cumulative sales have reached 100,000 sets, serving over 4,000+ end users including Mondelez, Pepsico, and Yili Dairy. We cooperate with 200+ packing machine manufacturers in China and export to 100+ countries through our global distribution network.

Main Components

Controller

Printer Unit

Bracket

Specification

Product name	DK-1100B Ink Roll Coder
Print Area	≤13 lines, max 20 characters/line
Type Sizes	Standard 3.0T, 2.5*7T, 3.5R (or customized size)
Pouch Length	≥38mm (4-up printer) ≥75mm (2-up printer)
Print Frequency	≤300 prints/min
Ink Roll Required	3632mm/3635mm/36*40mm
Electricity	AC220+10V, 50/60Hz
Power	130W, 2A fuse
Print Speed	35 meters/minute
Print Contents	MFG/EXP date, lot number, serial number, etc.

Note: The prices shown on ALIBABA are not final prices. Please consult us for proper solutions.

Application

Max Print Speed: 300 PPM
Surface Speed: 35 meters/minute
Print Info: date, lot number, shifts
Print Lines: max 13 lines
Industry: Food, daily chemicals

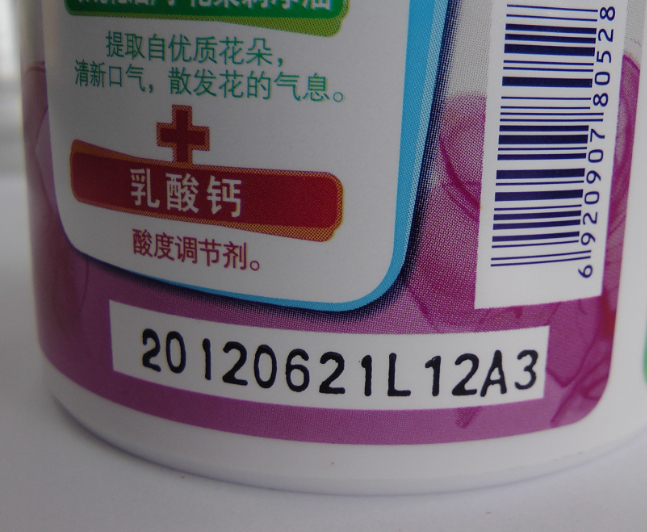

Print Results

Packaging & Shipping

Standard Export Cartons with soft protection inside
Suitable for international sea, air, fast courier shipping
Package Size: 77*33*27cm (with 500mm bracket)
Gross Weight: 9.5kg
Regular Lead Time: 1-2 weeks after order confirmation & payment

After Sales Service

Technical Supports

R&D supports
Operation Manual Guidance
Within 24-hour professional online supports
Video supports
Possible onsite supports

FAQ

1. Why choose Dikai?
Our company has dedicated 25 years to developing, manufacturing, and selling quality coding machines and consumables. We commit to satisfying every customer's unique needs in coding and marking.

2. What's the regular lead time for Dikai Products?
Lead time is 1-2 weeks after order confirmation. Stocked goods can be delivered in 2 working days.

3. What's the warranty of Dikai goods?
Standard warranty is 12 months after leaving Dikai Warehouse.

4. How about your after-sales service?
For countries with distributors, we rely on them for after-sales services. Dikai also provides online technical support and continuously upgraded video resources.
