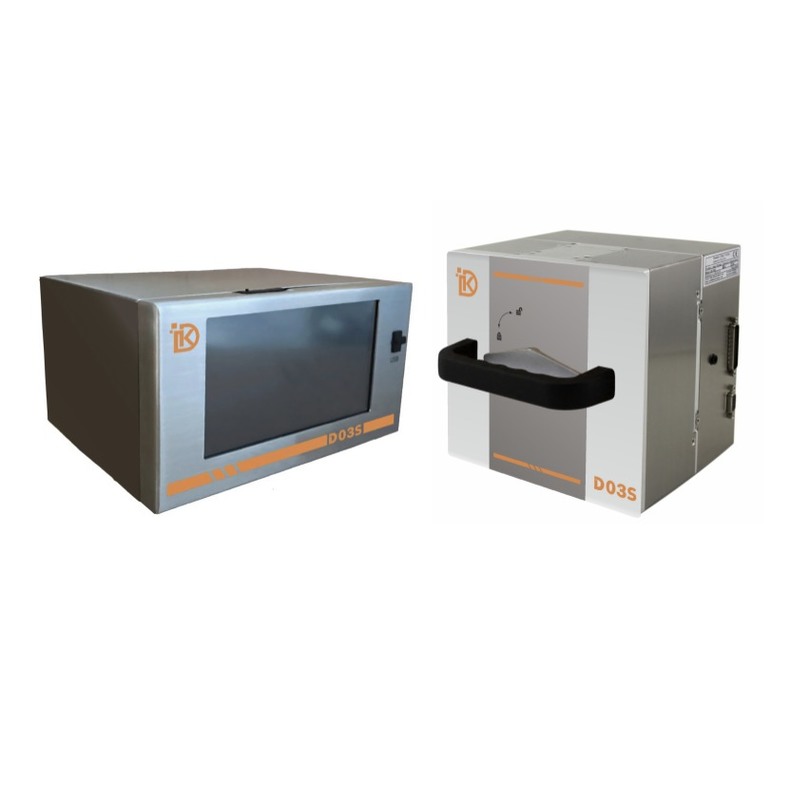

DIKAI D03S Thermal Transfer Overprinter with 32x60mm/32x100mm Print Area AC100-240V 50/60Hz and USB/RS232/Network Interface

Grundlegende Informationen

Herkunftsort:	Shanghai, China
Markenname:	Dikai

Min Bestellmenge:	1
Preis:	$2,700-3,000

Bestpreis Kontakt

Druckenkopf:	32 mm, Kyocera; 300DPI	Druckfläche:	Zeitweise: 32 mm60 mm, kontinuierlich: 32 mm100 mm
Band-Größe:	33 mm*500 m	Druckfrequenz:	Zeitweise: bis zu 350 ppm, kontinuierlich: bis zu 40 Meter/Minute
Stromversorgung:	AC110 ~ 220 V, 50/60 Hz, 150W	Betriebstemperatur:	0-40 ℃
Relative Luftfeuchtigkeit:	10% ~ 95% (Nicht-Kondensation)	Luftversorgung:	6Bar/90psi (max) trocken nicht kontaminiert
Gewicht:	Druckenkopf: 8,5 kg, Steuerbox: 2,0 kg	Dimension:	Druckeinheit: 188 mm190 mm180 mm, Controller Box: 210 mm180 mm155 mm
Druckmodus:	Zeitweise/kontinuierlich	Max -Bandlänge:	500 m
Bandbreite:	22 mm ~ 33 mm	Schnittstelle:	USB, RS232, Netzwerkschnittstelle
Druckauflösung:	300 dpi
Hervorheben:	32x60mm/32x100mm Print Area Thermal Transfer Overprinter , AC100-240V 50/60Hz TTO Printer , USB/RS232/Network Interface Date Coder Printer

DIKAI D03S Smart TTO Thermal Transfer Overprinter

Professional Label and Film Date Coding Solution

Product Overview

The DIKAI D03S Thermal Transfer Printer was developed through 4 years of dedicated R&D. This versatile machine combines intermittent and continuous printing modes, making it compatible with both horizontal and vertical packaging machines.

Key Features

Continuous & Intermittent printing modes
32mm Kyocera Printhead with 300 DPI resolution
Prints real-time dates, variable data, barcodes, QR codes, graphics, and logos
User-friendly interface for easy operation
Cost-effective industrial printing solution

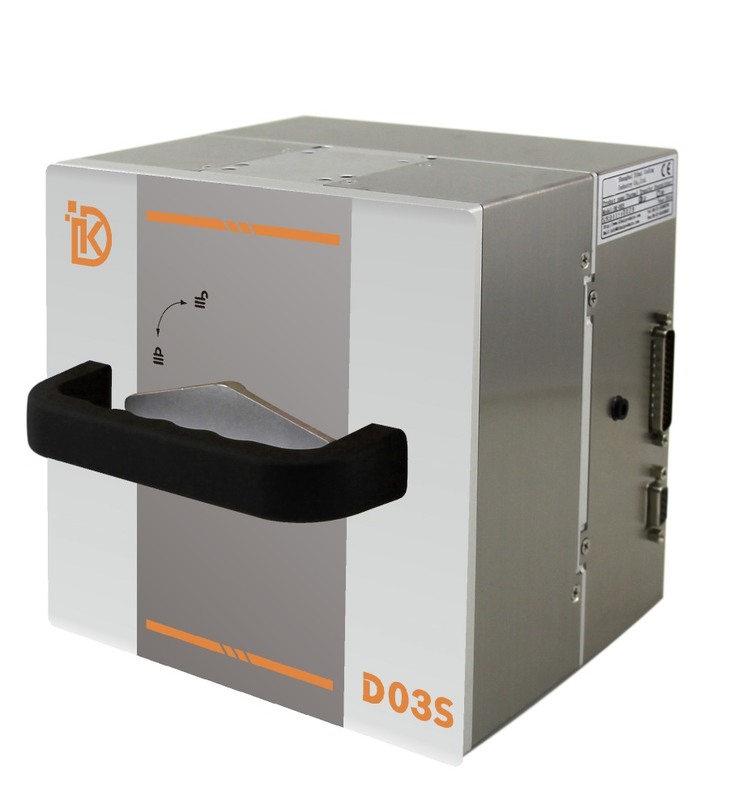

32mm Printhead Detail

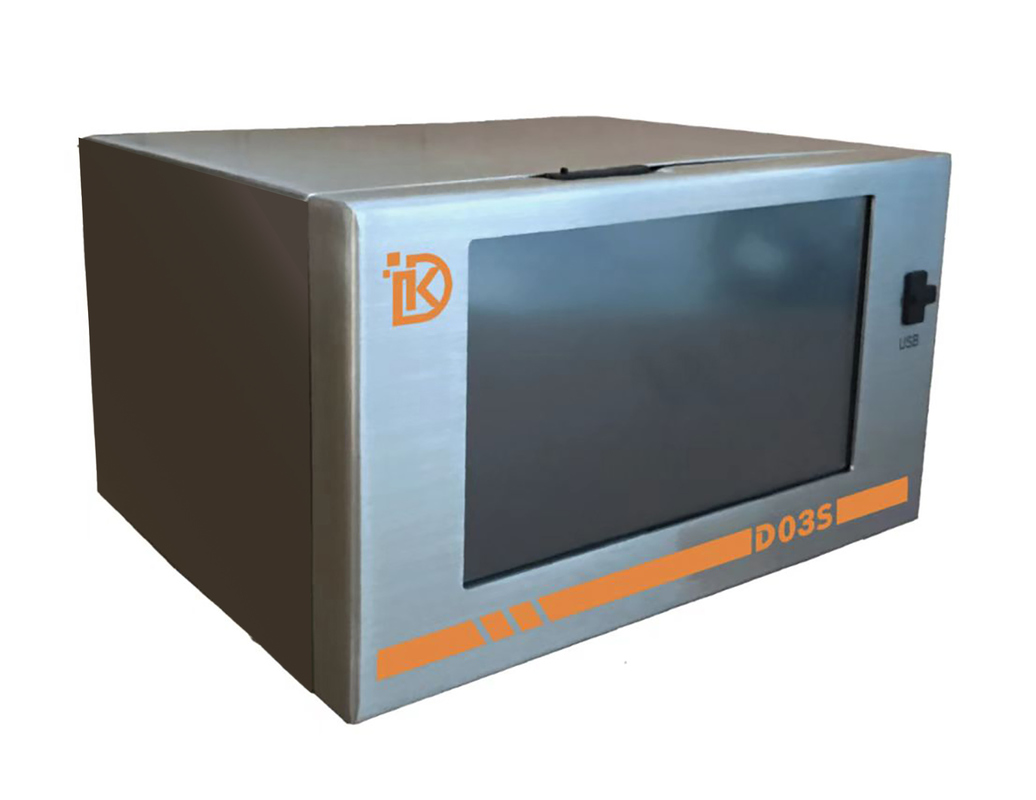

User Interface

Technical Specifications

Print Head	32mm, Kyocera; 300DPI
Print Area	Intermittent: 32mm×60mm Continuous: 32mm×100mm
Ribbon Size	33mm×500m
Print Frequency	Intermittent: up to 350PPM Continuous: up to 40 meters/minute
Power	AC110~220V, 50/60Hz, 150W
Operation Temperature	0-40℃
Humidity	10%~95% (non-condensing)
Air Supply	6bar/90PSI (MAX) dry uncontaminated
Weight	Print head: 8.5kg, Control box: 2.0kg
Dimensions	Print Unit: 188×190×180mm Controller box: 210×180×155mm
