DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking

DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking
Grundlegende Informationen
Herkunftsort: Shanghai, China
Markenname: DIKAI
Zertifizierung: CE; ISO 9001
Min Bestellmenge: 1
Preis: $450-600
Bestpreis Kontakt
Stromspannung: AC220+10V,50/60Hz Leistung: 130W, 2A-Sicherung
Druckgeschwindigkeit: max. 300 ppm, 35 Meter/Minute Druckfläche: T-Typ: ≤13 Zeilen, max. 20 Zeichen; R-Typ: ≤10 Zeilen, max. 13 Zeichen
Schriftgrößen: T-Typ: 2,0T, 2,5T, 3,0T, 2,5*7T; R-Typ: 3.5R, 4.5R, 5.5R Beutellänge: ≥38 mm (4-Seiten-Drucker), ≥75 mm (2-Seiten-Drucker)
Größe der Tintenrolle: 36*32mm, 36*35mm, 36*40mm Abmessungen: Druckereinheit: 120 x 100 x 170 mm
Gewicht: Druckeinheit: 2 kg, Controller-Box: 1 kg Druckfrequenz: ≤300 Mal/Min
Druck-Inhalt: MFG-/EXPdatum, Partienummer, Seriennummer Kernkomponenten: PC-Board
Angetriebener Typ: Elektrisch Automatische Note: Automatisch
Verpackungsmaterial: Papier
Hervorheben:

Long Service Life Ink Roll Coder

,

Compact Size Date Code Printer

,

Stable Printing Expiry Date Printer

DIKAI DK-1100A Ink Roll Coder Date Machine
Product Overview

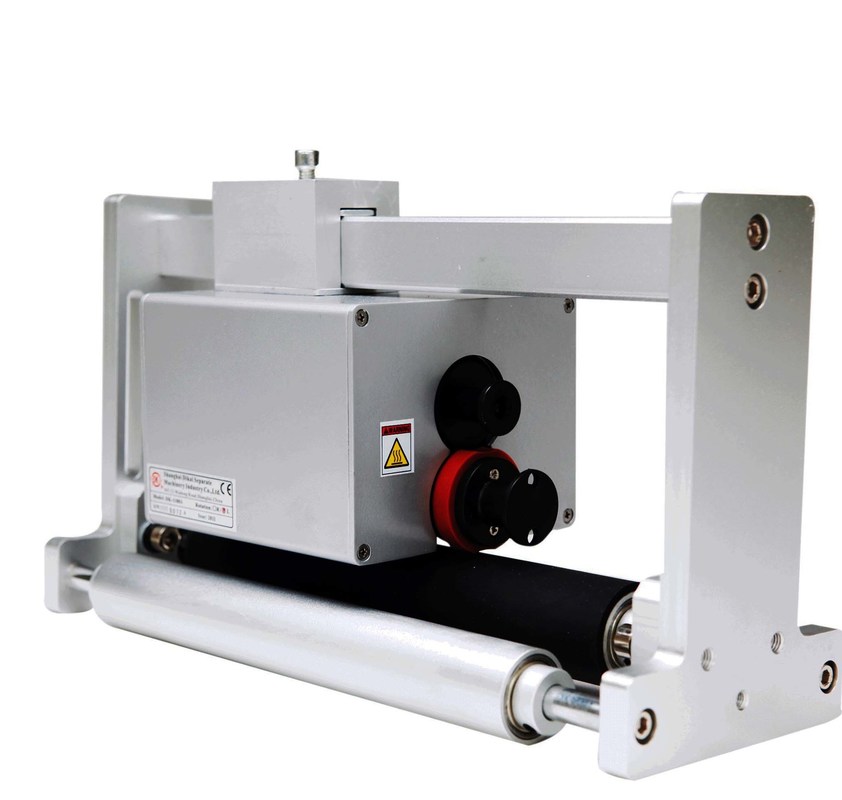

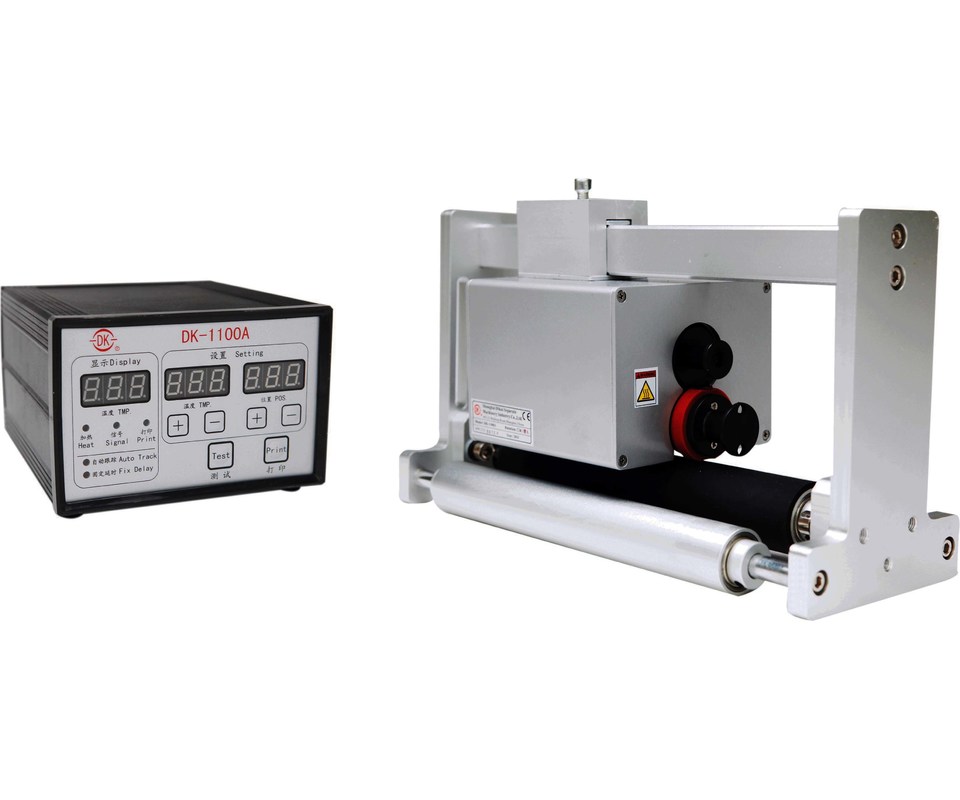

The DK-1100A Ink Roll Coder is an electronic continuous motion coder designed for integration with packing machines, capable of printing at speeds up to 300 PPM. With a print area supporting up to 13 lines, it efficiently prints MFG/EXP dates, lot numbers, and other essential information on flexible packaging films. Widely used in food, daily chemicals, tissue, rice, and seed industries, this model has achieved over 100,000 units sold since its 2011 launch. Its nearly maintenance-free operation significantly reduces operational costs.
Key Features
  • Fast printing speed up to 300 PPM
  • Consistent and stable printing quality
  • Low mechanism consumption
  • Compact design for easy integration
  • Simple installation and operation
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking 0 DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking 1 DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking 2 DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking 3
Technical Specifications
Product Name DK-1100A Ink Roll Coder
Print Area T-Type (Axial): ≤13 lines, max 20 characters per line
R-Type (Radial): ≤10 lines, max 13 characters per line
Type Sizes T-Type: 2.0T, 2.5T, 3.0T, 2.5*7T
R-Type: 3.5R, 4.5R, 5.5R
Pouch Length ≥38mm (4-up printer)
≥75mm (2-up printer)
Print Frequency ≤300 times/min
Ink Roll Required 36×32mm, 36×35mm, 36×40mm
Electricity AC220+10V, 50/60Hz
Power 130W, 2A fuse
Print Speed Max 300PPM, 35 meters/minute
Print Contents MFG/EXP date, lot number, serial number, etc.
Note: Prices shown are not final. Please consult us for customized solutions.

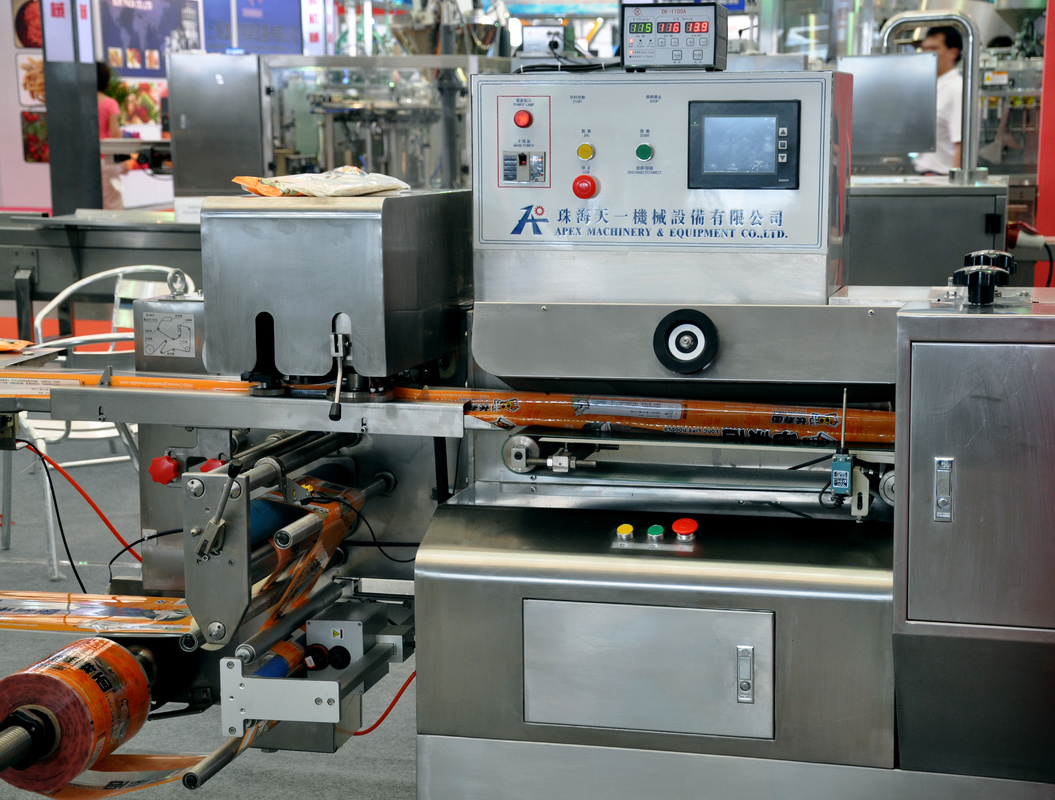

Installation & Operation
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking 4 DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking 5
Printing Samples
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking 6 DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking 7
Packaging & Shipping
The product is securely packaged in cartons suitable for sea, air, or courier shipping.
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking 8 DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking 9
Technical Support
  • R&D support
  • Operation manual guidance
  • 24-hour professional online support
  • Video tutorials
  • Possible on-site support
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking 10
Frequently Asked Questions
1. Why choose Dikai?
With 25 years of experience in developing, manufacturing, and selling quality coding machines and consumables, we are committed to meeting every customer's unique coding and marking requirements.
2. What's the regular lead time for Dikai products?
Standard lead time is 1-2 weeks after order confirmation. Stocked items can be shipped within 2 working days.
3. What's the warranty of Dikai goods?
Standard warranty is 12 months from the date of leaving our warehouse.
4. How about your after-sales service?
We work with local distributors for after-sales support in their regions, supplemented by online technical services and continuously updated video support materials.
